Spark-从wordCount到job调度过程

Spark
字数统计: 3.1k字   |   阅读时长≈ 15分钟

以wordCount为例, 研究学习spark(版本2.1.0)的整个job调度过程,整理总结如下:

WordCount

首先, 一个简单的wordCount程序

1
2
3
4
5
val rawFile = sc.textFile("README.md")
val words = rawFile.flatMap(w => w.split(" "))
val wordNum = words.map(w => (w, 1))
val wordCount = wordNum.reduceByKey(_ + _)
wordCount.collect

我是用idea + spark-shell断点调试spark源码的, 可以一行代码一行代码的追执行过程, 调试方法可见我的另一篇文章 Spark-断点调试.

第一行

1
val rawFile = sc.textFile("README.md")

调用的SparkContext的textFile方法, 看源码:

1
2
3
4
5
6
7
def textFile(
    path: String,
    minPartitions: Int = defaultMinPartitions): RDD[String] = withScope {
  assertNotStopped()
  hadoopFile(path, classOf[TextInputFormat], classOf[LongWritable], classOf[Text],
    minPartitions).map(pair => pair._2.toString).setName(path)
}

可以看出此处先是hadoopFile方法读取hdfs上的一个README.md文件, 并生成了一个HadoopRDD, 随后又调用map方法, 生成了一个MapPartitionsRDD.

执行结果:

1
2
scala> val rawFile = sc.textFile("README.md")
rawFile: org.apache.spark.rdd.RDD[String] = README.md MapPartitionsRDD[3] at textFile at <console>:24

第二行

1
val words = rawFile.flatMap(w => w.split(" "))

此处调用了MapPartitionsRDD继承自RDD类的flatMap方法, 源码:

1
2
3
4
def flatMap[U: ClassTag](f: T => TraversableOnce[U]): RDD[U] = withScope {
  val cleanF = sc.clean(f)
  new MapPartitionsRDD[U, T](this, (context, pid, iter) => iter.flatMap(cleanF))
}

flatMap方法可以将RDD中的每一个元素进行一对多转换, 所以此处使用flatMap方法将读入的内容按空格分割, 每个单词成为一个元素, 转变完仍为MapPartitionsRDD.

第三行

1
val wordNum = words.map(w => (w, 1))

此处调用了MapPartitionsRDD继承自RDD类的map方法, 见源码:

1
2
3
4
def map[U: ClassTag](f: T => U): RDD[U] = withScope {
  val cleanF = sc.clean(f)
  new MapPartitionsRDD[U, T](this, (context, pid, iter) => iter.map(cleanF))
}

map方法将RDD中类型为T的元素一对一映射为类型为U的元素, 所以此处我们要统计的单个单词被转换为了(w, 1)形式的键值对, 进过此步转换仍为MapPartitionsRDD.

第四行

1
val wordCount = wordNum.reduceByKey(_ + _)

这次调用的reduceByKey方法不在RDD类里, 而在PairRDDFunctions类, 这里发生了一个隐式转换, 将MapPartitionsRDD转换成了PairRDDFunctions, 方法源码:

1
2
3
def reduceByKey(func: (V, V) => V): RDD[(K, V)] = self.withScope {
  reduceByKey(defaultPartitioner(self), func)
}

reduceByKey按key把相同单词加到一起, 得出每个单词出现的频率.

第五行

1
wordCount.collect

到第四行为止, 所有任务并没有执行, 只到第五步, 调用RDD的collect方法, 会调用sc.runJob, 源码:

1
2
3
4
def collect(): Array[T] = withScope {
  val results = sc.runJob(this, (iter: Iterator[T]) => iter.toArray)
  Array.concat(results: _*)
}

从这里开始生成Job并提交到Spark集群中运行, 至此才引出我们研究的重点, Job的整个调度过程.

此处调用的是SparkContext的runJob方法, 在SparkContext中重载了很多runJob方法, 通过一连串的runJob间调用, 设置了RDD, function, 分区数, 匿名函数转换等, 最后到了最重要的DAGScheduler.runJob.

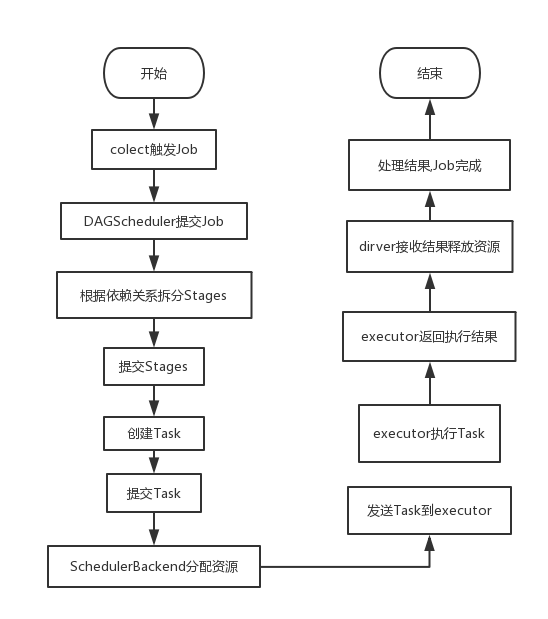

Jobd调度流程

1. DAGScheduler提交Job

DAGScheduler最重要的任务之一就是分析依赖关系划分Stage, 而发起job调度入口有两个, 一个是submitJob:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
def submitJob[T, U](
    rdd: RDD[T],
    func: (TaskContext, Iterator[T]) => U,
    partitions: Seq[Int],
    callSite: CallSite,
    resultHandler: (Int, U) => Unit,
    properties: Properties): JobWaiter[U] = {
  // Check to make sure we are not launching a task on a partition that does not exist.
  val maxPartitions = rdd.partitions.length
  partitions.find(p => p >= maxPartitions || p < 0).foreach { p =>
    throw new IllegalArgumentException(
      "Attempting to access a non-existent partition: " + p + ". " +
        "Total number of partitions: " + maxPartitions)
  }

  val jobId = nextJobId.getAndIncrement()
  if (partitions.size == 0) {
    // Return immediately if the job is running 0 tasks
    return new JobWaiter[U](this, jobId, 0, resultHandler)
  }

  assert(partitions.size > 0)
  val func2 = func.asInstanceOf[(TaskContext, Iterator[_]) => _]
  val waiter = new JobWaiter(this, jobId, partitions.size, resultHandler)
  eventProcessLoop.post(JobSubmitted(
    jobId, rdd, func2, partitions.toArray, callSite, waiter,
    SerializationUtils.clone(properties)))
  waiter
}

它返回一个JobWaiter对象, 可以用在异步调用中.
另一个入口就是runJob:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
def runJob[T, U](
    rdd: RDD[T],
    func: (TaskContext, Iterator[T]) => U,
    partitions: Seq[Int],
    callSite: CallSite,
    resultHandler: (Int, U) => Unit,
    properties: Properties): Unit = {
  val start = System.nanoTime
  val waiter = submitJob(rdd, func, partitions, callSite, resultHandler, properties)
  // Note: Do not call Await.ready(future) because that calls `scala.concurrent.blocking`,
  // which causes concurrent SQL executions to fail if a fork-join pool is used. Note that
  // due to idiosyncrasies in Scala, `awaitPermission` is not actually used anywhere so it's
  // safe to pass in null here. For more detail, see SPARK-13747.
  val awaitPermission = null.asInstanceOf[scala.concurrent.CanAwait]
  waiter.completionFuture.ready(Duration.Inf)(awaitPermission)
  waiter.completionFuture.value.get match {
    case scala.util.Success(_) =>
      logInfo("Job %d finished: %s, took %f s".format
        (waiter.jobId, callSite.shortForm, (System.nanoTime - start) / 1e9))
    case scala.util.Failure(exception) =>
      logInfo("Job %d failed: %s, took %f s".format
        (waiter.jobId, callSite.shortForm, (System.nanoTime - start) / 1e9))
      // SPARK-8644: Include user stack trace in exceptions coming from DAGScheduler.
      val callerStackTrace = Thread.currentThread().getStackTrace.tail
      exception.setStackTrace(exception.getStackTrace ++ callerStackTrace)
      throw exception
  }
}

runJob在内部调用submitJob, 阻塞等待直到Job完成或失败.
从submitJob方法里可以看到, 在此处向eventProcessLoop里发送了一个JobSubmitted的消息.
那么eventProcessLoop是什么呢

1
private[scheduler] val eventProcessLoop = new DAGSchedulerEventProcessLoop(this)

这就是DAGScheduler自己维护的一个消息队列, 处理各种类型的消息, 当收到JobSubmitted消息时会调用handleJobSubmitted方法, 在这个方法里开始重要的第二步, 分析继承关系拆分Stages.

2. 拆分提交Stages

在handleJobSubmitted方法中, 首先会根据这个RDD的信息计算出这个Job的所有Stages.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
private[scheduler] def handleJobSubmitted(jobId: Int,
      finalRDD: RDD[_],
      func: (TaskContext, Iterator[_]) => _,
      partitions: Array[Int],
      callSite: CallSite,
      listener: JobListener,
      properties: Properties) {
    var finalStage: ResultStage = null
    try {
      // New stage creation may throw an exception if, for example, jobs are run on a
      // HadoopRDD whose underlying HDFS files have been deleted.
      finalStage = createResultStage(finalRDD, func, partitions, jobId, callSite)
    } catch {
      case e: Exception =>
        logWarning("Creating new stage failed due to exception - job: " + jobId, e)
        listener.jobFailed(e)
        return
    }

    val job = new ActiveJob(jobId, finalStage, callSite, listener, properties)
    clearCacheLocs()
    logInfo("Got job %s (%s) with %d output partitions".format(
      job.jobId, callSite.shortForm, partitions.length))
    logInfo("Final stage: " + finalStage + " (" + finalStage.name + ")")
    logInfo("Parents of final stage: " + finalStage.parents)
    logInfo("Missing parents: " + getMissingParentStages(finalStage))

    val jobSubmissionTime = clock.getTimeMillis()
    jobIdToActiveJob(jobId) = job
    activeJobs += job
    finalStage.setActiveJob(job)
    val stageIds = jobIdToStageIds(jobId).toArray
    val stageInfos = stageIds.flatMap(id => stageIdToStage.get(id).map(_.latestInfo))
    listenerBus.post(
      SparkListenerJobStart(job.jobId, jobSubmissionTime, stageInfos, properties))
    submitStage(finalStage)
  }

可以看到createResultStage方法, 生成了一个ResultStage, 代码:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
/**
   * Create a ResultStage associated with the provided jobId.
   */
  private def createResultStage(
      rdd: RDD[_],
      func: (TaskContext, Iterator[_]) => _,
      partitions: Array[Int],
      jobId: Int,
      callSite: CallSite): ResultStage = {
    val parents = getOrCreateParentStages(rdd, jobId)
    val id = nextStageId.getAndIncrement()
    val stage = new ResultStage(id, rdd, func, partitions, parents, jobId, callSite)
    stageIdToStage(id) = stage
    updateJobIdStageIdMaps(jobId, stage)
    stage
  }

其中getOrCreateParentStages方法根据依赖关系拆分了Stage, 返回了一个List[Stage]又传入了ResultStage中, 拆分Stage部分的代码我就不贴出来了, 感兴趣可以自行阅读.
handleJobSubmitted方法中得到finalStage后, 进行了一系列操作, 构建ActiveJob, 启动Job, 最后提交了Stage, 准备开始生成真正下发执行的Task任务.

那么看submitStage方法:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
/** Submits stage, but first recursively submits any missing parents. */
  private def submitStage(stage: Stage) {
    val jobId = activeJobForStage(stage)
    if (jobId.isDefined) {
      logDebug("submitStage(" + stage + ")")
      if (!waitingStages(stage) && !runningStages(stage) && !failedStages(stage)) {
        val missing = getMissingParentStages(stage).sortBy(_.id)
        logDebug("missing: " + missing)
        if (missing.isEmpty) {
          logInfo("Submitting " + stage + " (" + stage.rdd + "), which has no missing parents")
          submitMissingTasks(stage, jobId.get)
        } else {
          for (parent <- missing) {
            submitStage(parent)
          }
          waitingStages += stage
        }
      }
    } else {
      abortStage(stage, "No active job for stage " + stage.id, None)
    }
  }

递归提交Stage, 有parent的先提交parent, 没有parent的才开始生成Task.

3. 创建提交Task

创建提交Task调用的是submitStage方法里的submitMissingTasks方法, 这个方法代码比较长, 我就不全部贴出来了.
Stage分ShuffleMapStage和ResultStage, Task也分为ShuffleMapTask和ResultTask两种, 方法里导出都是模式匹配分别处理这两种Stage, 关键生成Task的代码如下:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
val tasks: Seq[Task[_]] = try {
      stage match {
        case stage: ShuffleMapStage =>
          partitionsToCompute.map { id =>
            val locs = taskIdToLocations(id)
            val part = stage.rdd.partitions(id)
            new ShuffleMapTask(stage.id, stage.latestInfo.attemptId,
              taskBinary, part, locs, stage.latestInfo.taskMetrics, properties, Option(jobId),
              Option(sc.applicationId), sc.applicationAttemptId)
          }

        case stage: ResultStage =>
          partitionsToCompute.map { id =>
            val p: Int = stage.partitions(id)
            val part = stage.rdd.partitions(p)
            val locs = taskIdToLocations(id)
            new ResultTask(stage.id, stage.latestInfo.attemptId,
              taskBinary, part, locs, id, properties, stage.latestInfo.taskMetrics,
              Option(jobId), Option(sc.applicationId), sc.applicationAttemptId)
          }
      }
    } catch {
      case NonFatal(e) =>
        abortStage(stage, s"Task creation failed: $e\n${Utils.exceptionString(e)}", Some(e))
        runningStages -= stage
        return
    }

生成Task之后通过TaskScheduler把Task提交.

1
2
taskScheduler.submitTasks(new TaskSet(
        tasks.toArray, stage.id, stage.latestInfo.attemptId, jobId, properties))

submitTasks方法的实现在TaskSchedulerimpl.scala, 这里首先创建了一个TaskSetManager来辅助调度, 然后调用了SchedulerBackend的reviveOffers方法去申请资源.

4. 分配executors

这里reviveOffers方法的实现跳到了CoarseGrainedSchedulerBackend.scala文件:

1
2
3
override def reviveOffers() {
    driverEndpoint.send(ReviveOffers)
  }

此处发送了一条ReviveOffers消息, 被自身接收到然后继续处理:

1
2
3
4
override def receive: PartialFunction[Any, Unit] = {
      case ReviveOffers =>
        makeOffers()
    }

makeOffers方法很重要, 这里调用了resourceOffers方法去获取当前可用的资源信息, 而当前正在执行的多个TaskSet会根据这些资源信息将当前可执行的Task和这个Task要运行在哪个executor上包装到一个TaskDescription中返回回来, 再调用launchTasks正式把Task推倒executor端去执行.

1
2
3
4
5
6
7
8
9
private def makeOffers(executorId: String) {
      // Filter out executors under killing
      if (executorIsAlive(executorId)) {
        val executorData = executorDataMap(executorId)
        val workOffers = IndexedSeq(
          new WorkerOffer(executorId, executorData.executorHost, executorData.freeCores))
        launchTasks(scheduler.resourceOffers(workOffers))
      }
    }
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
// Launch tasks returned by a set of resource offers
    private def launchTasks(tasks: Seq[Seq[TaskDescription]]) {
      for (task <- tasks.flatten) {
        val serializedTask = ser.serialize(task)
        if (serializedTask.limit >= maxRpcMessageSize) {
          scheduler.taskIdToTaskSetManager.get(task.taskId).foreach { taskSetMgr =>
            try {
              var msg = "Serialized task %s:%d was %d bytes, which exceeds max allowed: " +
                "spark.rpc.message.maxSize (%d bytes). Consider increasing " +
                "spark.rpc.message.maxSize or using broadcast variables for large values."
              msg = msg.format(task.taskId, task.index, serializedTask.limit, maxRpcMessageSize)
              taskSetMgr.abort(msg)
            } catch {
              case e: Exception => logError("Exception in error callback", e)
            }
          }
        }
        else {
          val executorData = executorDataMap(task.executorId)
          executorData.freeCores -= scheduler.CPUS_PER_TASK

          logDebug(s"Launching task ${task.taskId} on executor id: ${task.executorId} hostname: " +
            s"${executorData.executorHost}.")

          executorData.executorEndpoint.send(LaunchTask(new SerializableBuffer(serializedTask)))
        }
      }
    }

在launchTasks方法中才把executors资源真的分配给Task并把分配掉的资源扣除, 然后把Task序列化后发送往executor端.

5. executor执行Task

接下来程序就运行到了CoarseGrainedExecutorBackend.scala的receive方法, 这里接收到driver端发来的LaunchTask消息开始触发执行, 关键代码:

1
2
3
4
5
6
7
8
9
10
11
override def receive: PartialFunction[Any, Unit] = {
    case LaunchTask(data) =>
      if (executor == null) {
        exitExecutor(1, "Received LaunchTask command but executor was null")
      } else {
        val taskDesc = ser.deserialize[TaskDescription](data.value)
        logInfo("Got assigned task " + taskDesc.taskId)
        executor.launchTask(this, taskId = taskDesc.taskId, attemptNumber = taskDesc.attemptNumber,
          taskDesc.name, taskDesc.serializedTask)
      }
  }

这里首先把Task反序列化, 然后交给Executor.scala的launchTask方法:

1
2
3
4
5
6
7
8
9
10
11
def launchTask(
      context: ExecutorBackend,
      taskId: Long,
      attemptNumber: Int,
      taskName: String,
      serializedTask: ByteBuffer): Unit = {
    val tr = new TaskRunner(context, taskId = taskId, attemptNumber = attemptNumber, taskName,
      serializedTask)
    runningTasks.put(taskId, tr)
    threadPool.execute(tr)
  }

这里new了一个TaskRunner, 继续执行TaskRunner的run方法, run方法代码很长就不贴了, 这里就是具体执行Task的实现, 可以自己去看源码.

6. 执行结果返回

当run方法执行完以后, 把结果数据序列化返回, 如果数据过大, 就把数据写磁盘返回数据的位置, 通过statusUpdate方法回传给
CoarseGrainedExecutorBackend.scala, executorBackend再发送了一条StatusUpdate消息把结果返回给了CoarseGrainedSchedulerBackend.scala

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
override def receive: PartialFunction[Any, Unit] = {
      case StatusUpdate(executorId, taskId, state, data) =>
        scheduler.statusUpdate(taskId, state, data.value)
        if (TaskState.isFinished(state)) {
          executorDataMap.get(executorId) match {
            case Some(executorInfo) =>
              executorInfo.freeCores += scheduler.CPUS_PER_TASK
              makeOffers(executorId)
            case None =>
              // Ignoring the update since we don't know about the executor.
              logWarning(s"Ignored task status update ($taskId state $state) " +
                s"from unknown executor with ID $executorId")
          }
        }
}

driver端收到消息后, 先把结果传给了TaskScheduler, 然后释放了executor资源.
接下来到TaskScheduler之后调用比较绕, 首先把Task清理掉, 然后使用TaskResultGetter来处理结果:

1
2
3
4
5
6
7
8
9
if (TaskState.isFinished(state)) {
              cleanupTaskState(tid)
              taskSet.removeRunningTask(tid)
              if (state == TaskState.FINISHED) {
                taskResultGetter.enqueueSuccessfulTask(taskSet, tid, serializedData)
              } else if (Set(TaskState.FAILED, TaskState.KILLED, TaskState.LOST).contains(state)) {
                taskResultGetter.enqueueFailedTask(taskSet, tid, state, serializedData)
              }
            }

在TaskResultGetter中判断结果数据的存放位置, 如果在内存中就直接取结果, 如果在磁盘, 就根据blockid信息去对应机器上拉取数据, 然后放到driver的内存, 最后调用handleSuccessfulTask方法把结果返回给TaskScheduler.

1
scheduler.handleSuccessfulTask(taskSetManager, tid, result)

接下来用到了之前辅助调度创建的TaskSetManager

1
2
3
4
5
6
def handleSuccessfulTask(
      taskSetManager: TaskSetManager,
      tid: Long,
      taskResult: DirectTaskResult[_]): Unit = synchronized {
    taskSetManager.handleSuccessfulTask(tid, taskResult)
  }

TaskScheduler调用TaskSetManager, TaskSetManager再调用DAGScheduler, 并将结果数据返回给了DAGScheduler.

1
sched.dagScheduler.taskEnded(tasks(index), Success, result.value(), result.accumUpdates, info)

taskEnded方法向DAGScheduler维护的队列里发送了一个CompletionEvent消息, 来触发DAGScheduler的handleTaskCompletion方法来数据数据.
handleTaskCompletion方法里会判断这是一个ShuffleMapTask还是一个ResultTask, 如果是ShuffleMapTask则继续提交下一个Stage, 如果是ResultTask, 则会通过以下代码把结果交给JobWaiter.

1
job.listener.taskSucceeded(rt.outputId, event.result)

JobWaiter最后做一些处理, 然后把结果一路返回给调用SparkContext.runJob的地方, 至此整个Job调度就完成了.

总结

下面用几张图做一个总结:

Job的调度执行流程

整个Job的执行流程

Job提交执行期间的函数调用
此处输入图片的描述

ps:
最近学习Spark的Job调度过程, 看了一遍源码后发现扭头就忘, 所以就整理了下来. Spark代码实在量太大, Job执行的有些细节实现也没自己研究, 只是把大体流程梳理了下来, 如有错误欢迎指正.

打赏
  • 版权声明： 本博客所有文章除特别声明外，均采用 Apache License 2.0 许可协议。转载请注明出处！
  • © 2017-2023 王丹鹏
  • Powered by Hexo Theme Ayer
  • 冀ICP备15029707号

请我喝杯咖啡吧~

支付宝
微信
